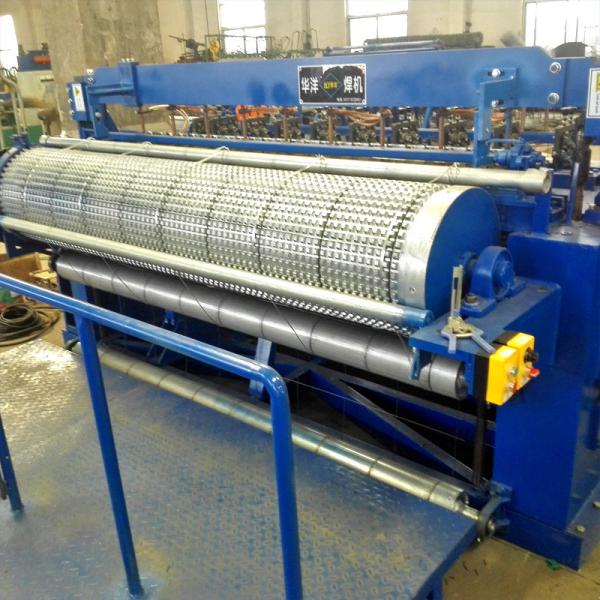

Automatic Electric GI Wire Net Making Machine
1. Product description
Automatic electric GI wire net making machine is used for making wire mesh. This machine is equipped with precise equipment for weft cutting and position, so the length of wefts is identical and regular, it is unnecessary to slice the side. The feature of the machine is saving materials and high capacity. The button switches to start and stop machine easily. The automatic electric GI wire net making machine can be quick and easy roll extraction from the machine.
2. Technical parameter
| Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
| R- DHW | 1-2.5m | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 1-2.5m | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 1-2.5m | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 1-2.5m | 1x1 | 0.8-1.6 | 90-110 | 100 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 1-2.5m | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
The automatic electric GI wire net making machine can be widely usded for prevention for road, railway, airport, residence district, seaport, garden, feeding and husbandry.
4. Advantages
a. This machine is fully automatic to feed wires, weld mesh, cut edge and roll mesh.
b. We use variable frequency from Schneider Siemens to control motor for easy maintenance.
c. The use of separating timely welding, to reduce the load power and achieve energy-efficient.
d. The mesh roll length can be set by counter switch on the control panel.
e. We are engaged in wire mesh welding machine for more than 20 years, providing you with the most professional knowledge and the most suitable machine.
